Mobile DVR

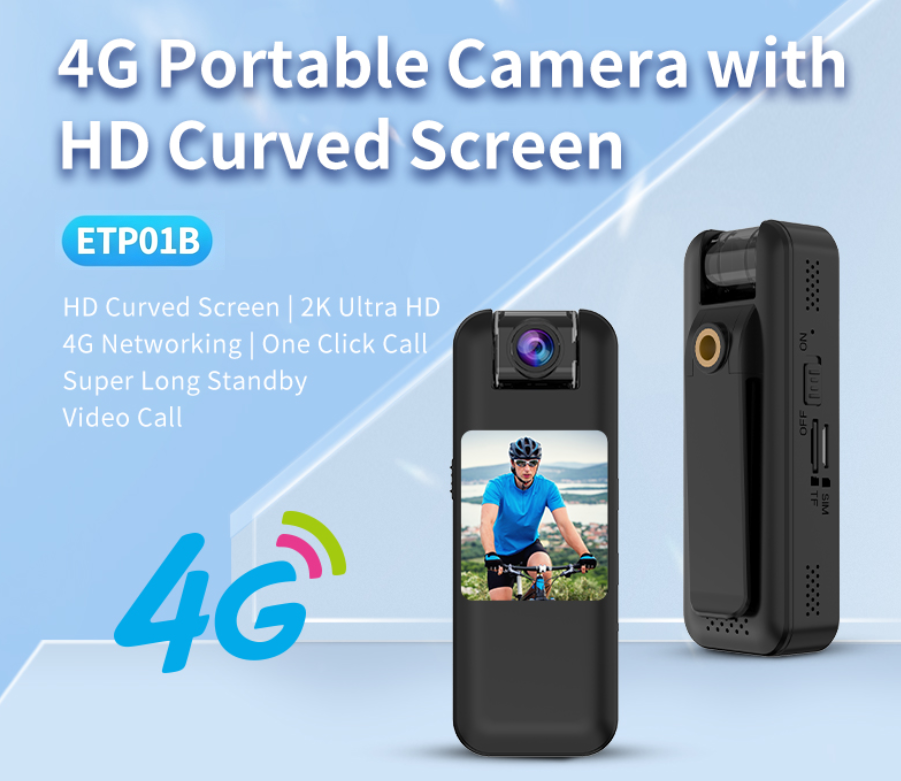

4G Portable Camera

Main Features

✮ Portable, capable of restoring the truth in law enforcement records.

✮ Features 4G remote live – streaming, enabling remote on – site monitoring anytime and anywhere.

✮ Equipped with a 3 – megapixel high – definition resolution and a high – definition curved screen, allowing for one – click video calls.

✮ Combines audio recording, video recording, and call functions, ensuring sound and picture synchronization.

✮ The built – in lithium – ion battery enables continuous video recording for 8 hours.

✮ Supports 940nm infrared night vision without light, with a night – vision range of 5 meters. Also supports the on – off function of infrared night vision.

✮ Allows for manual 180° lens rotation, and the APP can be used to set the video to flip vertically.

✮ Supports multi – user sharing, enabling up to 4 users to watch remotely simultaneously.

✮ Cloud service: Motion – detected videos are pushed to the cloud for storage. Even if the device is stolen, important videos will not be lost.

Item	Category	Type	Parameters
1	System	Operating system	linux
		Number of online users	4 users watching online simultaneously
		APP	O-KAM PRO
2	Collection	CPU	T23
		Memory	512Mbit
		Image sensor	GC2083
		Minimum illumination	0.5Lux (Color Mode), 0.1Lux (Black and White Mode)
		Lens	GC2083/1G3P
		Viewing angle	Diagonal 135°
3	Video	Night vision	Four 940nm infrared lights, providing a night vision range of 3 – 7 meters in zero – light conditions.
		Compression standard	H.264 /M-JPEG/JPEG
		Multi-resolution	Three options are available: – Ultra HD: 2304×1296@15fps, 768kpbs – HD: 2304×1296@15fps, 512kpbs – SD: 640×360@15fps, 256kpbs
		Image adjustment	Supports vertical image flipping.
		Screen	1.3 inch screen
4	Audio	Input	Built-in -38dB microphone
		Sampling frequency/bit width	8KHz/16bit
		Compression standard/bit rate	G711A
5	AI	Human detection, human frame	Human – shaped detection: Filters out invalid alarm events and frames the human figure.
		Motion detection	Moving object detection, remote alarm events
		Area detection	Only monitor the areas that users care about
6	Network	4G (domestic version) network	FDD:B1/B3/B5/B8
		4G (domestic version) network	TDD:B34/B38/B39/B40/B41
		4G (European version) network	FDD:B1/B3/B7/B8/B20/B28
			TDD:–
7	Button	Reset button	Long press to restore factory settings
		Record button	Short press to pause recording and save
		One-touch call button	One-key call to bind the user APP
		Power button	Power switch. Push up to turn on and push down to turn off
8	Storage	Storage function	Support T-Flash card (up to 256GB)
8	Storage	Cloud storage	1 day free cycle cloud storage
9	Physical Index	Alarm detection	Motion detection alarm, human detection alarm
		Power supply	DC5V±5%@Type-C interface
		Working environment	Operating temperature: -10 to 55 °C, operating humidity < 90%
		Weight	Gross weight: TBD (Note: Subject to the actual product)
		Dimensions
		Packing list	1 xMain unit, 1 xInstruction manual, 1 xType-C cable
