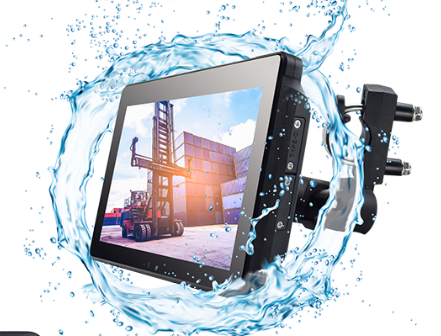

ETM72B

BSD series display

Products model :ETM72B

1、 Product parameters
Product Model	ETM72B
Screen Type	TFT-LCD
Screen size diagonal	7 inch （16 : 9）
Number of Pixels	1024(RGB)*600(pixel)
Screen backlight	LED
Brightness	500cd/m2
Active Display Area	155.08（W）×85（H）mm
Viewing angle	85/85/85/85(L/R/U/D)
Power supply	DC InPut 12V -24V MAX:35V
Power Consumption	8W
Signal interface(s)	AV1 / AV2 (AHD720P/1080P)
System	PAL / NTSC
Language Menus	Simplified Chinese/Traditional Chinese/English
Operation Method	KEY / Voice control
Maximum storage	CLASS10，Max 256GB
Wake-up-from voice	View all, open the front, open the back, open the screen, close the screen
Operatiom Temprature	– 2 0 ～ 7 0 ℃
Outline Dimension	178.5×118.5×26.8 mm

2、Hardware Specifications & LCD Specifications

Interface & Function	POWER	B+:DC12-36V ACC:DC12-36V
	Video1 / Video2	AHD720P/720N/1080P/1080N input (Pin1: VCC, Pin2: GND, Pin3: NC, Pin4:VDIEO2)
	Trigger	9V-40V High level trigger, automatic video conversion

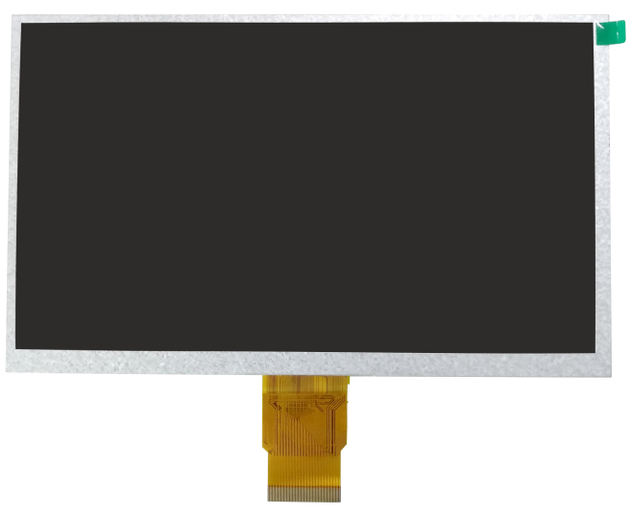

LCD size	7.0 inch diagonal
Pixels	1024(H) x 600(V)
Driver element	IPS TFT active matrix
Pixel Pitch	0.1506(H) × 3(RGB) × 0.1432(V) mm
Color	RGB vertical stripe Pixel Arrangement
Response Time	25ms (typ.) (Tr+Tf)
Interface	TTL
Contrast Ratio	500 (Typ.)
Input Voltage	+3.3 (Typ.) V

3、Keyboard function introduction

SN.	Silk screen Name	Function	SN.	Silk screen Name
1	/	Infrared remote control receiver	5
2	POWER	Screen off and on	6	MENU
3		UP	7	V1/V2
4		DOWN	8	TF

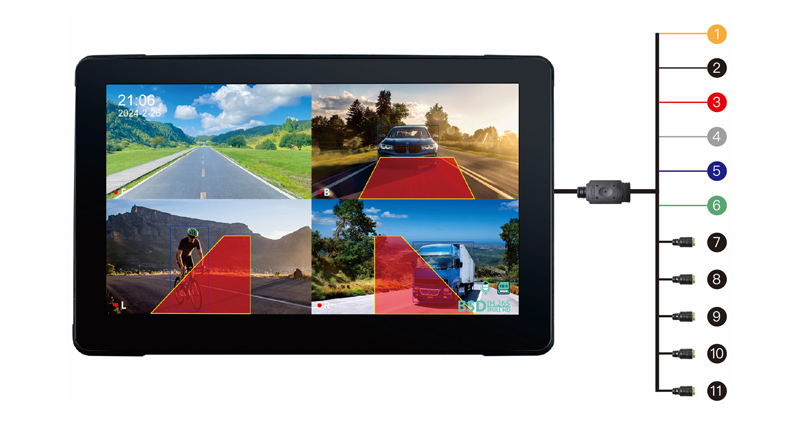

4、Connection method


No.	Wiring name	Function
1	B+	Connect to the battery anode+
2	GND	Connect to the battery cathode-
3	ACC	Connect to Ignition line
4	CH1	the 1st camera
5	CH2	the 2nd video input(Connect the rearview camera)
6	CH2 trig	Reversing trigger, connect to the positive pole of the reversing light
7	alarm	connect to the sound and light alarm

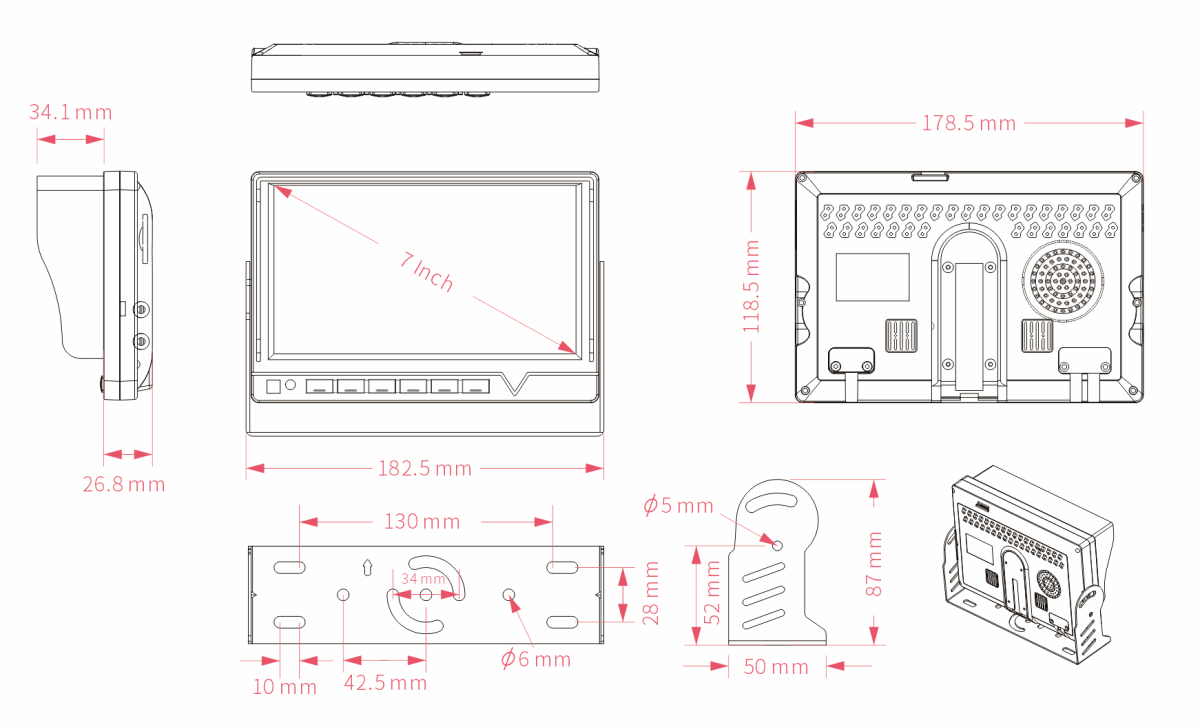

5、Product profile domensions and installation dimensions

6、Product packaging

7、Product Accessories List

No.	Part No.	Description	Qty/case	Unit	Remark
1		7inch monitor DVR	1	pcs
2		visor	1	pcs
3		bracket	1	pcs
4		screw for bracket	4	pcs
5		power line	1	pcs
6		5m extension line	1	pcs	If you buy an alarm, get an extra one
7		15m extension line	1	pcs
8		Starlight night vision waterproof Camera	2	pcs	AHD720P
9		sound and light alarm	1	pcs	Optional (plastic or metal)
