ETM104B

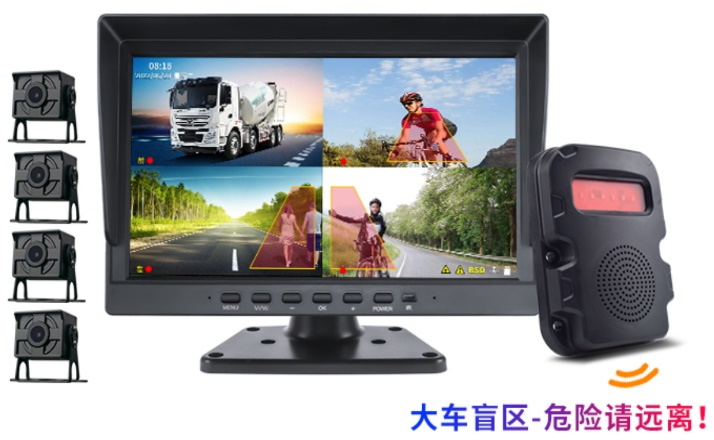

BSD series display

Products model :ETM104B

1、 Product parameters
Product Model				ETM104B
Screen Type				TFT-LCD
Screen size diagonal				10.1 inch （16 : 7）
Number of Pixels				1280(RGB)*800(pixel)
Screen backlight				LED
Brightness				500cd/m2
Active Display Area				216.58 (V) x 135.36(H)
Viewing angle				85/85/85/85(L/R/U/D)
Power supply				DC InPut 12V -24V MAX:35V
Power Consumption				8W
Signal interface(s)				AV1 / AV2 /AV3 /AV4 (AHD720P/1080P)
System				PAL / NTSC
Language Menus				Simplified Chinese/Traditional Chinese/English
Operation Method				KEY / Voice control
Maximum storage				CLASS10，Max 256GB
Wake-up-from voice				View all, open the front, open the back, open the screen, close the screen
Operatiom Temprature				– 2 0 ～ 7 0 ℃
Outline Dimension				(L)252165(W)(T)66.5mm

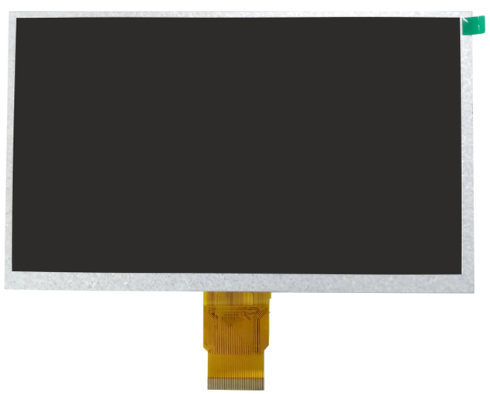

2、Hardware Specifications & LCD Specifications

Interface & Function	POWER	B+:DC12-36V ACC:DC12-36V
	Video1 / Video2	AHD720P/720N/1080P/1080N input (Pin1: VCC, Pin2: GND, Pin3: NC, Pin4:VDIEO2)
	Trigger	9V-40V High level trigger, automatic video conversion
LCD size	10.1 inch diagonal
Pixels	1280(H) x 800(V)
Driver element	IPS TFT active matrix
Pixel Pitch	0.1506(H) × 3(RGB) × 0.1432(V) mm
Color	RGB vertical stripe Pixel Arrangement
Response Time	25ms (typ.) (Tr+Tf)
Interface	TTL
Contrast Ratio	500 (Typ.)
Input Voltage	+3.3 (Typ.) V

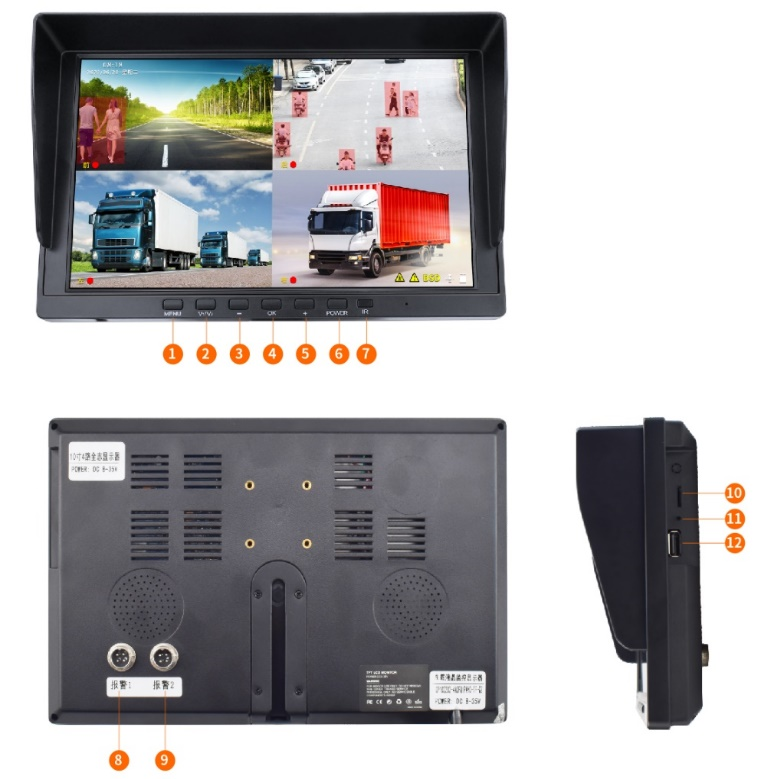

3、Keyboard function introduction

SN.	Silk screen Name	Function	SN.	Silk screen Name	Function
1	MENU	menu/return	7	IR	Infrared signal reception
2	V1/V2	video switch	8	alarm 1	connect 1st sound and light alarm
3	–	option;Value adjustment	9	alarm 2	connect 2nd sound and light alarm
4	OK	start recording or stop recording;Confirm button	10	TF	Please insert the memory card correctly according to the “TF Card Notch Prompt Direction” on the device, with the gold finger facing back, and press the memory card until it clicks and inserts it into place.
5	+	option;Value adjustment	11	RST	reset button
6	POWER	Short press to turn on/off screen; Long press to turn on/off the host	12	USB	Non-functional

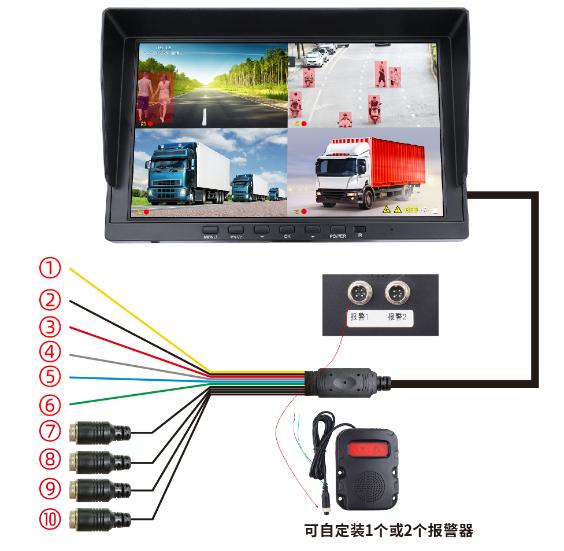

4、Connection method

No.	Wiring name	Function
1	B+	Connect to the battery anode+
2	GND	Connect to the battery cathode-
3	ACC	Connect to Ignition line
4	CH2 trig	Reversing trigger, connect to the positive pole of the reversing light
5	CH3 trig	Left turn trigger, connect the positive pole of the left turn light
6	CH4 trig	Right turn trigger, connect the positive pole of the right turn light
7	CH1	the 1st camera
8	CH2	the 2nd video input(Connect the rearview camera)
9	CH3	the 3rd video input(Connect the left camera)
10	CH4	the forth video input(Connect the right camera)

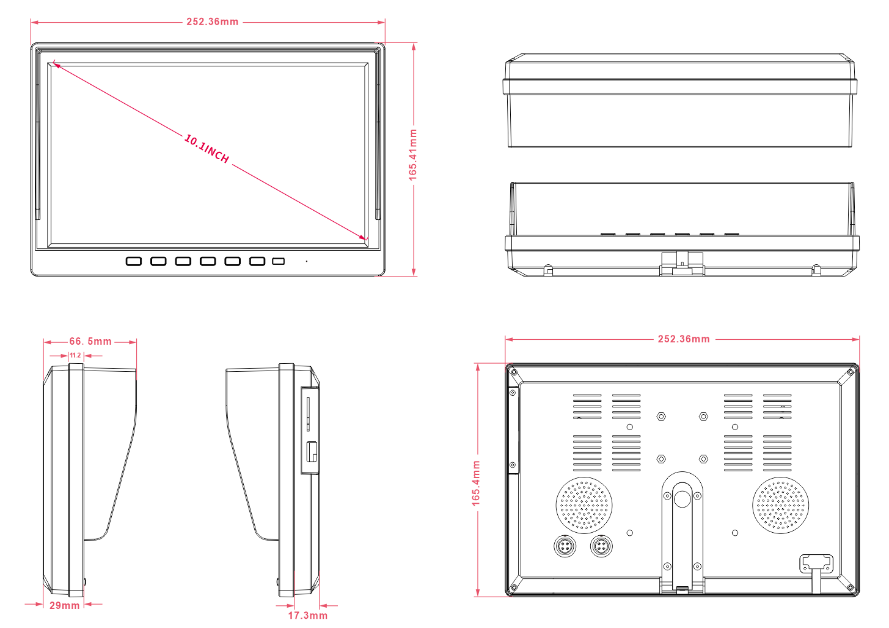

5、Product profile domensions and installation dimensions

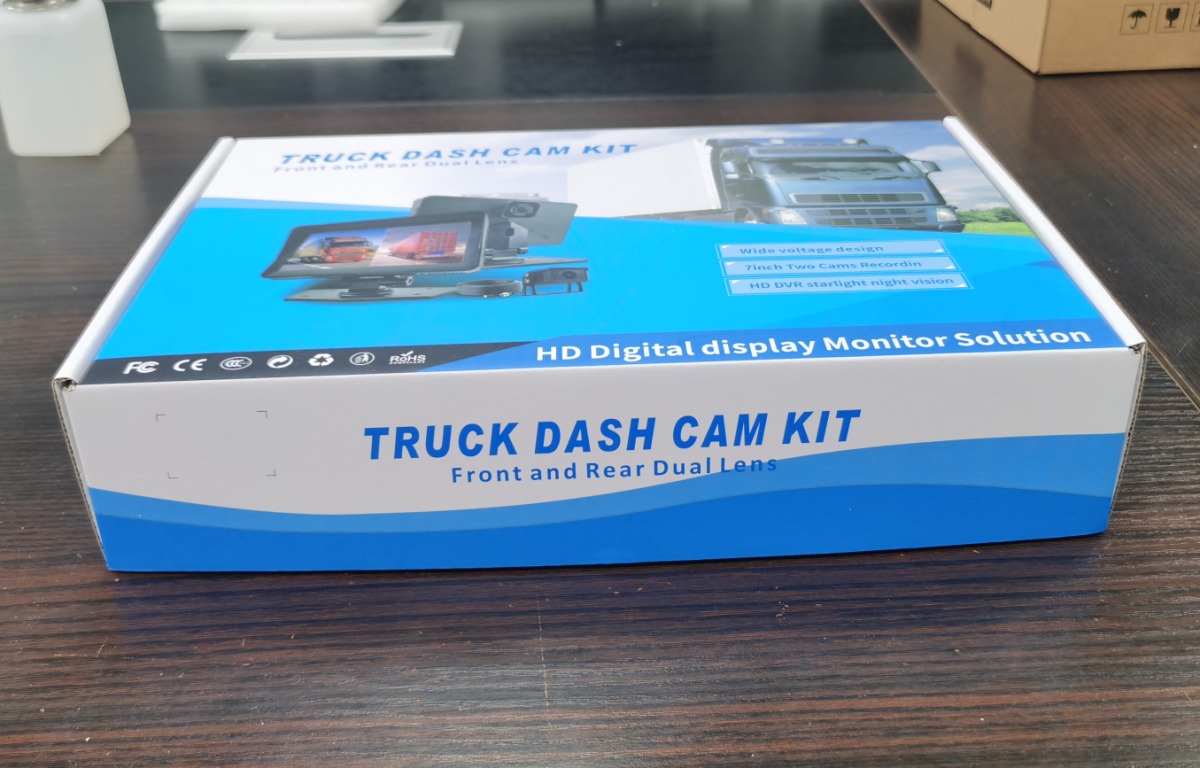

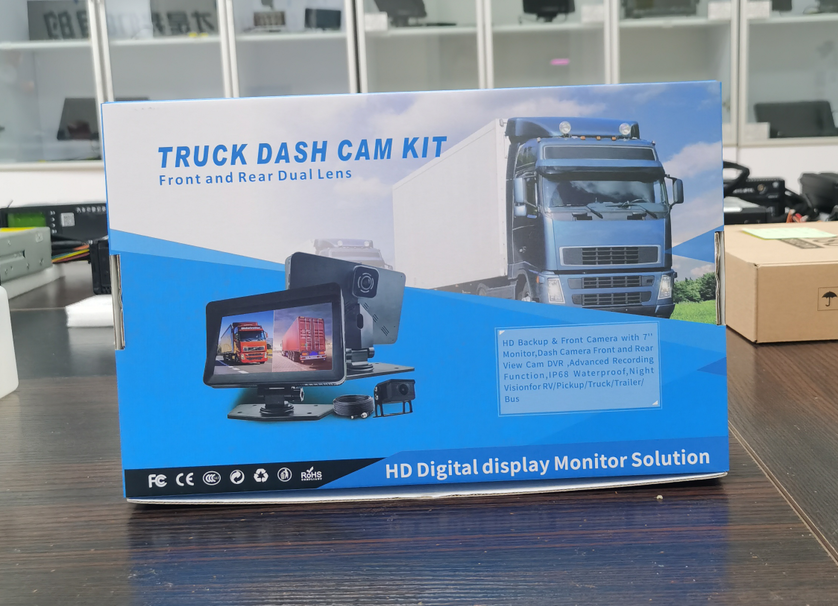

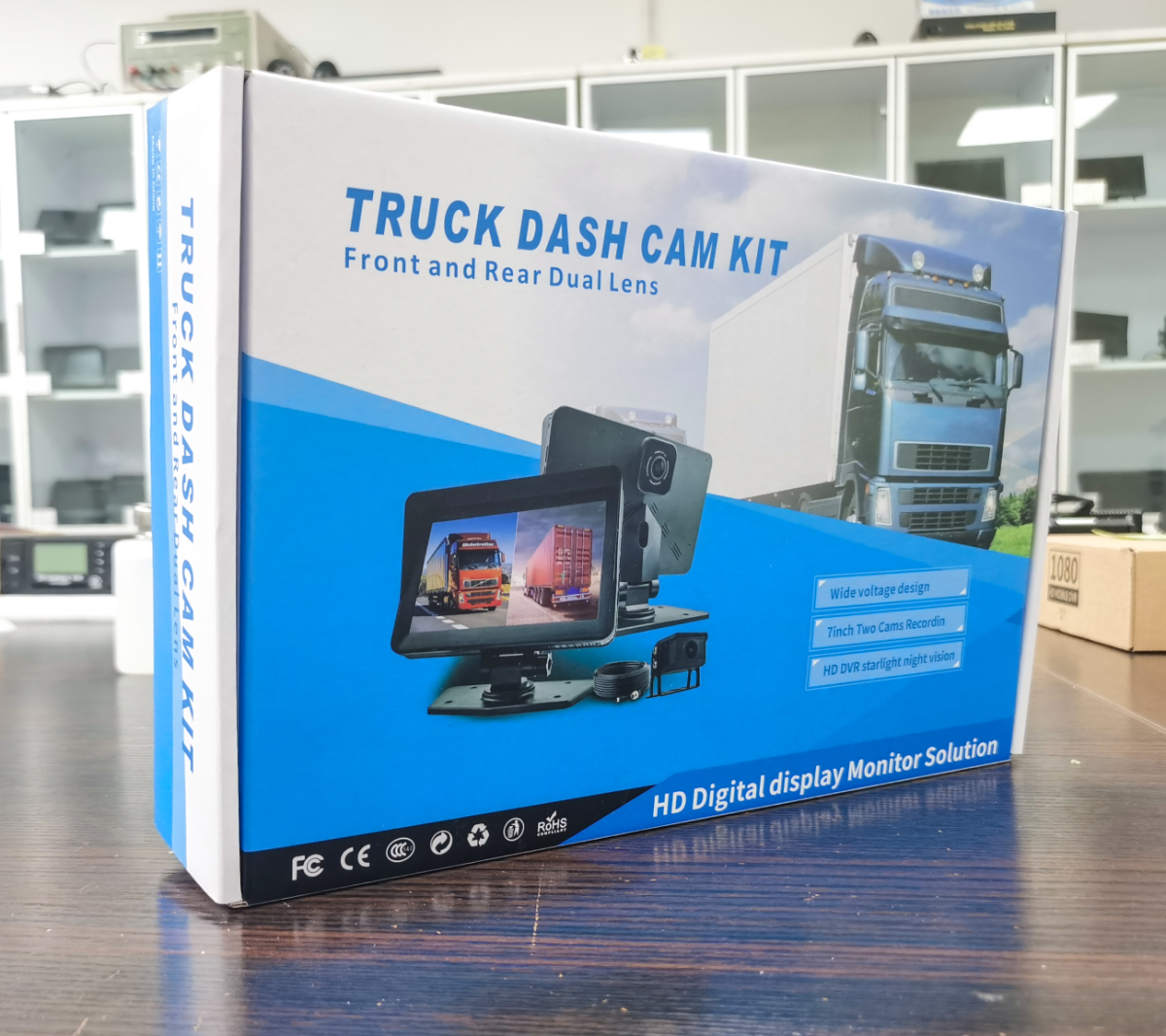

6、Product packaging

7、Product Accessories List
No.	Part No.	Description	Qty/case	Unit	Remark
1		10.1 inch monitor DVR	1	pcs
3		bracket and screw	1	pcs
6		5m extension line	3	pcs	If you buy an alarm, get an extra one
7		15m extension line	1	pcs
8		Starlight night vision waterproof Camera	4	pcs	AHD720P
9		sound and light alarm	1	pcs	Optional (plastic or metal)
