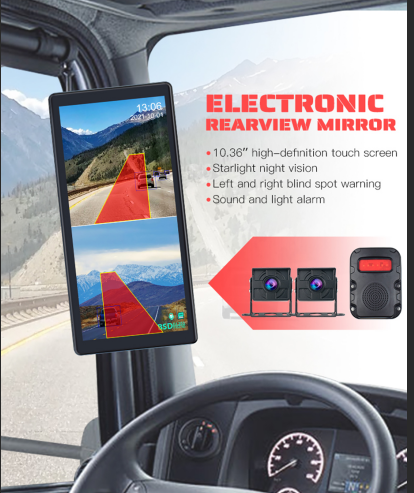

ETM102BTH (BSD Double Record) is a mainstream intelligent blind area monitoring equipment for large vehicles (vans, engineering vehicles, muck trucks, etc.). It is equipped with two high-definition cameras. The display host identifies pedestrians appearing in the blind area through AI algorithm, and prompts the driver with voice., and supports a sound and light alarm all the way. When a pedestrian approaches the blind area of the large vehicle, it proactively warns of danger;It also has the video recording function (plug in TF card), and records two camera videos at the same time, and stores them separately.

BSD series display

Products model :ETM102BTH

1、 Product parameters
Product Model				ETM102BTH
Screen Type				TFT-LCD
Screen size diagonal				10.36 inch
Number of Pixels				720(RGB)*1600(pixel)
Screen backlight				LED
Brightness				800cd/m2
Active Display Area				113(W) x 248(H)mm
Viewing angle				80/80/80/80(L/R/U/D)
Power supply				DC InPut 12V -24V MAX:35V
Power Consumption				6W
Signal interface(s)				AV1 / AV2 (AHD720P)
System				PAL/NTSC(Auto)
Language Menus				Simplified Chinese/Traditional Chinese/English
Operation Method				Touch / Voice control
Maximum storage				CLASS10，Max 256GB
Mode of operation				Touch / Voice control
Wake-up-from voice				View all, open the front, open the back, open the screen, close the screen
Operatiom Temprature				– 2 0 ～ 7 0 ℃
Outline Dimension				270(W)*128(H)mm

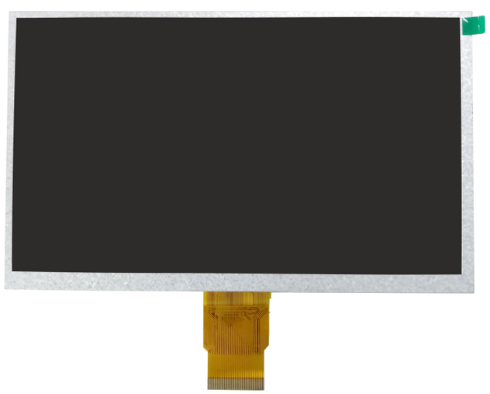

2、Hardware Specifications & LCD Specifications

Interface & Function	POWER	B+:DC12-36V ACC:DC12-36V
	Video1 / Video2	AHD720P input (Pin1: VCC, Pin2: GND, Pin3: NC, Pin4:VDIEO2)
	Trigger	9V-40V High level trigger, automatic video conversion
LCD size	10.36 inch diagonal
Pixels	720(H) x 1600(V)
Driver element	IPS TFT active matrix
Pixel Pitch	0.1506(H) × 3(RGB) × 0.1432(V) mm
Color	RGB vertical stripe Pixel Arrangement
Response Time	25ms (typ.) (Tr+Tf)
Interface	TTL
Contrast Ratio	500 (Typ.)
Input Voltage	+3.3 (Typ.) V

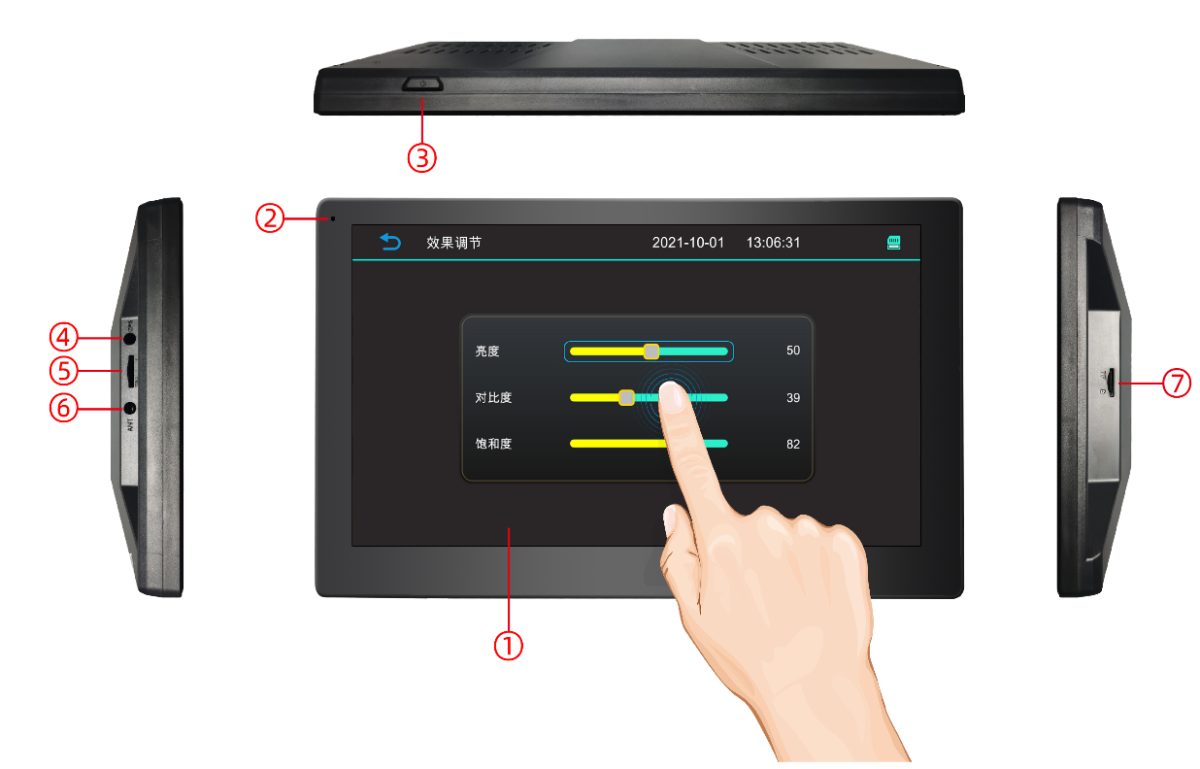

3、Keyboard function introduction

SN.	Silk screen Name	Function	SN.	Silk screen Name	Function
1		Touch monitor	5	SIM	Non-functional
2		speaker hole	6	ANT	Non-functional
3	POWER	Short press to turn on/off screen; Long press to turn on/off the host	7	TF	Please insert the memory card correctly according to the “TF Card Notch Prompt Direction” on the device, with the gold finger facing back, and press the memory card until it clicks and inserts it into place.
4	gps	Non-functional

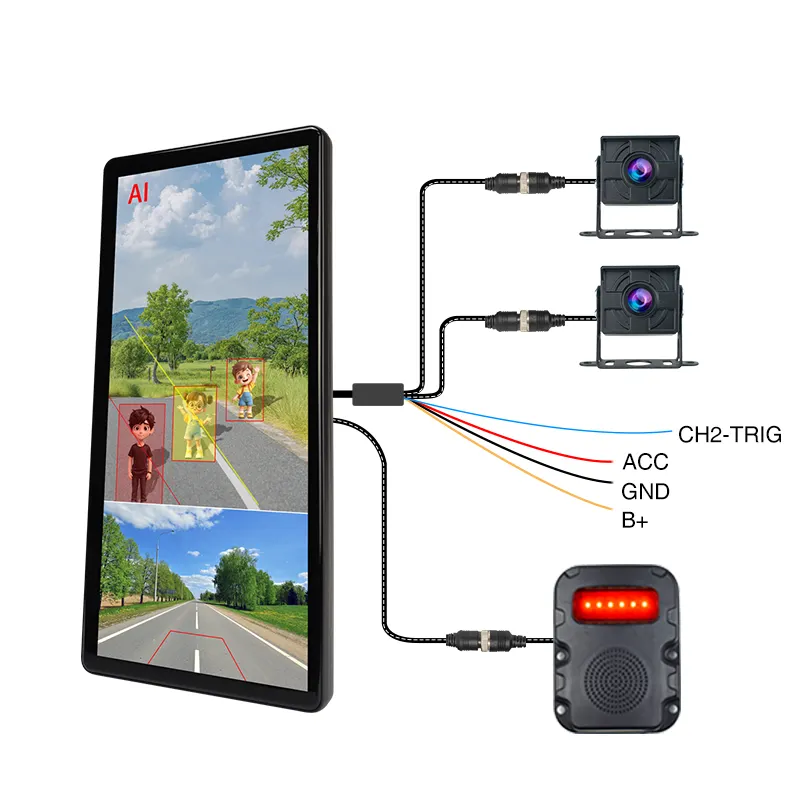

4、Connection method

No.	Wiring name	Function
1	B+	Connect to the battery anode+
2	GND	Connect to the battery cathode-
3	ACC	Connect to Ignition line
4	CH2 trig	Reversing trigger, connect to the positive pole of the reversing light
7	CH1	the 1st camera
8	CH2	the 2nd video input(Connect the rearview camera)
9	Alarm	connect a sound and light alarm

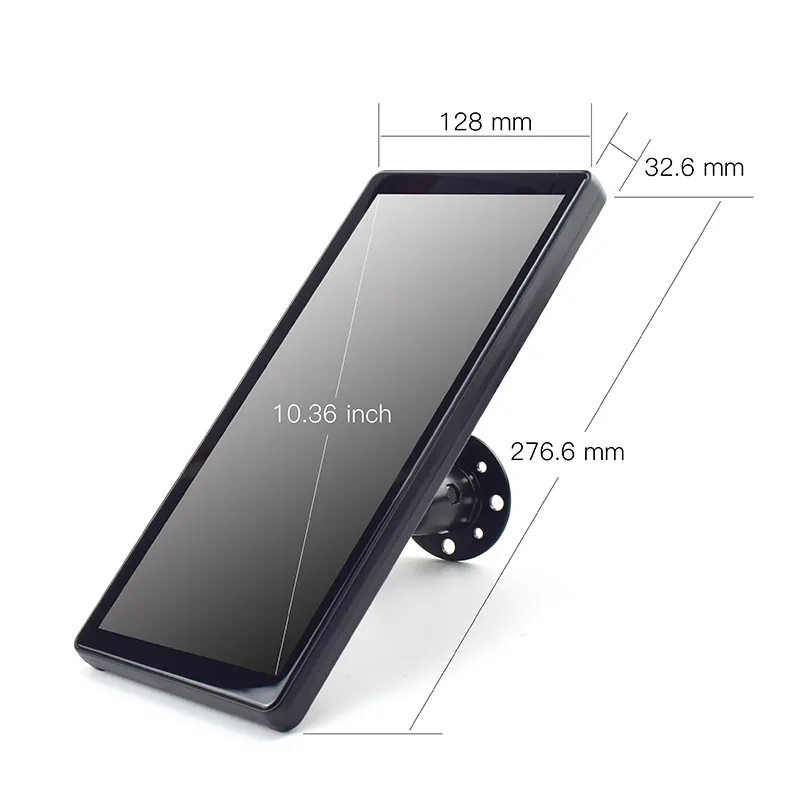

5、Product profile domensions and installation dimensions

6、Product packaging

7、Product Accessories List
No.	Part No.	Description	Qty/case	Unit	Remark
1		10.1 inch monitor DVR	1	pcs
3		bracket	1	pcs
6		screw for bracket	4	pcs
6		sponge pads for brackets	1	pcs
6		5m extension line	3	pcs	If you buy an alarm, get an extra one
7		15m extension line	1	pcs
8		Starlight night vision waterproof Camera	4	pcs	AHD720P
9		sound and light alarm	1	pcs	Optional (plastic or metal)
